Manufacturing features
At IAC we manufacture any type and version of cables that fit our industrial capabilities.
Click on the below tabs
CONDUCTOR
INSULATION
TAPE
SCREEN/BRAID
ARMOR
INNER/OUTER SHEATH
ADDITIVE
PACKAGING
CONDUCTOR
- Class 1,2,5,6 copper
- Polished or tinned
- mm2 or AWG
- Aluminum class 2
- Thermocouples
INSULATION
- PVC
- XLPE
- XLPO
- EPR
- HEPR
- PE
- PP EXP
- LSZH
- TPE
TAPE
- Polyester tape
- Non woven fabric
- Mica tape
- Water Blocking
SCREEN/BRAID
- Tinned copper wire braids
- Polished copper wire braids
- Aluminum/polyester tape
- Copper corrugated tape
- Aluminum corrugated tape
- Copper strip
ARMOR
- Braid armor with aluminum, steel, and galvanized steel strips SBA, ABA, etc.
- Corrugated tinned steel armor
- Steel wire armor of galvanized steel or aluminum wires SWA
INNER/OUTER SHEATH
- PVC
- NBR
- XLPE
- EPR
- HEPR
- PE
- LSZH
- TPE
- PUR
ADDITIVE
- Uv resistant
- Hydrocarbon resistant
- Oil resistant
- Anti-termite
- Anti-rodent
- Tropicalized
PACKAGING
- Rolls from 50 cm to 200 cm in diameter
- Plastic wrapped rolls
- Personalized marking
- Label customization
- Neutral drums
- Phytosanitary packaging
- On-demand lengths
Cable range
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-IAC-H05Z1-K-H07Z1-K-AS.png)
Power cables up to 750V
Power cables up to 750V PVC or Halogen Free, types such H07V-K , H07Z1-K, H05VV-F, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/02/CABLE-FICHERO-06.png)
Power cables up to 3kV
Power cables up to 3kV, PVC or Halogen Free. Types such RV-K , RZ1-K , R2V-U1000, NYKA, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/02/CABLE-FICHERO-19.png)
Shielded cables
Screened cables with copper, aluminum or iron braid, in PVC and Halogen Free. Types such VC4V-K, RC4V-K, RC4Z1-K, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-IAC-RZ1MZ1-K.png)
Steel wire armored cables
Cables up to 3kV, PVC or Halogen Free with galvanized steel wire armor and counter-spiral, Types such RVMV-K, RZ1MZ1-K, SWA, AWA etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-IAC-RZ1FZ1-K.png)
Steel strip armored cables
Armored cables with steel strips, in PVC or Halogen Free, type RVFV-K, RZ1FZ1-K, RZ1FAZ1-K, VVFV-K, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-IAC-RZ1OZ1-K.png)
Copper strip armored cables
Cables assembled with copper strips, in PVC or halogen-free, types such RZ1C7Z1-K, RZ1OZ1-K, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-IAC-LiYY.png)
Control cables
Multi-conductor cables for a wide range of industrial applications, in PVC and LSZH without screen or shield, types such YY, LiYYY, LiHH and similar.
![Image](https://www.cablesiac.com/wp-content/uploads/2024/02/CABLE-FICHERO-17.png)
Shielded control cables
Control cables with shields and braids, in PVC and LSZH, with colored or transparent sheaths, types such CY, LiYCY, LIHCH and similar.
![Image](https://www.cablesiac.com/wp-content/uploads/2024/02/CABLE-FICHERO-21.png)
Armored control cables
Control cables in PVC and LSZH, with armor, types SY and similar. In addition, the anti-UV, RH, etc. properties can be increased.
![Image](https://www.cablesiac.com/wp-content/uploads/2024/04/CABLES-IAC-azul1.png)
Instrumentation cables
Cables for low power electrical signals, with high flexibility, dielectric strength and service temperature. They can be paired individually and as a set. Both in PVC and LSZH.
![Image](https://www.cablesiac.com/wp-content/uploads/2024/04/CABLES-IAC-azul2.png)
Armored Instrumentation Cables
Instrumentation cables with mechanical protection through wire armor or strips. Both in PVC and LSZH and RH, UV properties. Types such YSLCY-OZ, LiYCY (TP), RE-2X(St)Y/Yv, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2024/02/CABLE-FICHERO-23-1.png)

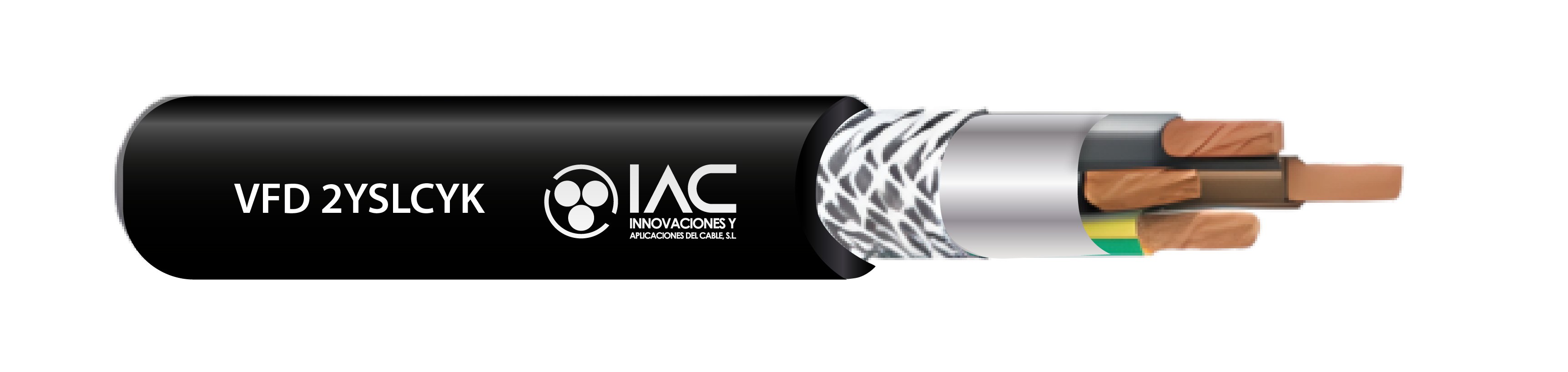

Servo and VFD cables
Cables up to 3kV for VFD, in PVC and LSZH, manufactured in various constructions according to the project. Types such 2YSLCY-J, 2YSLCYK-J, 2XSL(St), ROZ1-K, Z1C4Z1-K, etc...
Read More
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-4to-lote-03.png)
PUR Cables
PUR cables up to 3kV with high flexibility, resistance to chemical agents and low temperatures. Matte and glossy, with or without screen and armor. Types such H05BQ-F, H07B7-F, S1BQ-F, 9Y11Y, combi-cables etc...
Read More
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLES-IAC-RZ1-K-AS.png)
Fire resistant cables
Fire resistant power, control and instrumentation cables PH120, PH90, PH60, types such RZ1-K AS+, RZ1MZ1-K AS+, etc....
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLE-FICHERO-28.png)
Welding & Battery cables
Robust cables for welding equipment and battery jump starters made of standard or extra-flexible copper, both polished and tinned, and high-quality flexible PVC.
![Image](https://www.cablesiac.com/wp-content/uploads/2024/03/CABLE-3ER-LOTE-09.png)
Solar cable H1Z2Z2-K
Solar cable type H1Z2Z2-K used in fotovoltaic pannels. Cross sections from 4mm2 to 240mm2. Class 5 tinned copper, LSZH, AD8 and anti-UV.
![Image](https://www.cablesiac.com/wp-content/uploads/2024/02/CABLE-FICHERO-29.png)

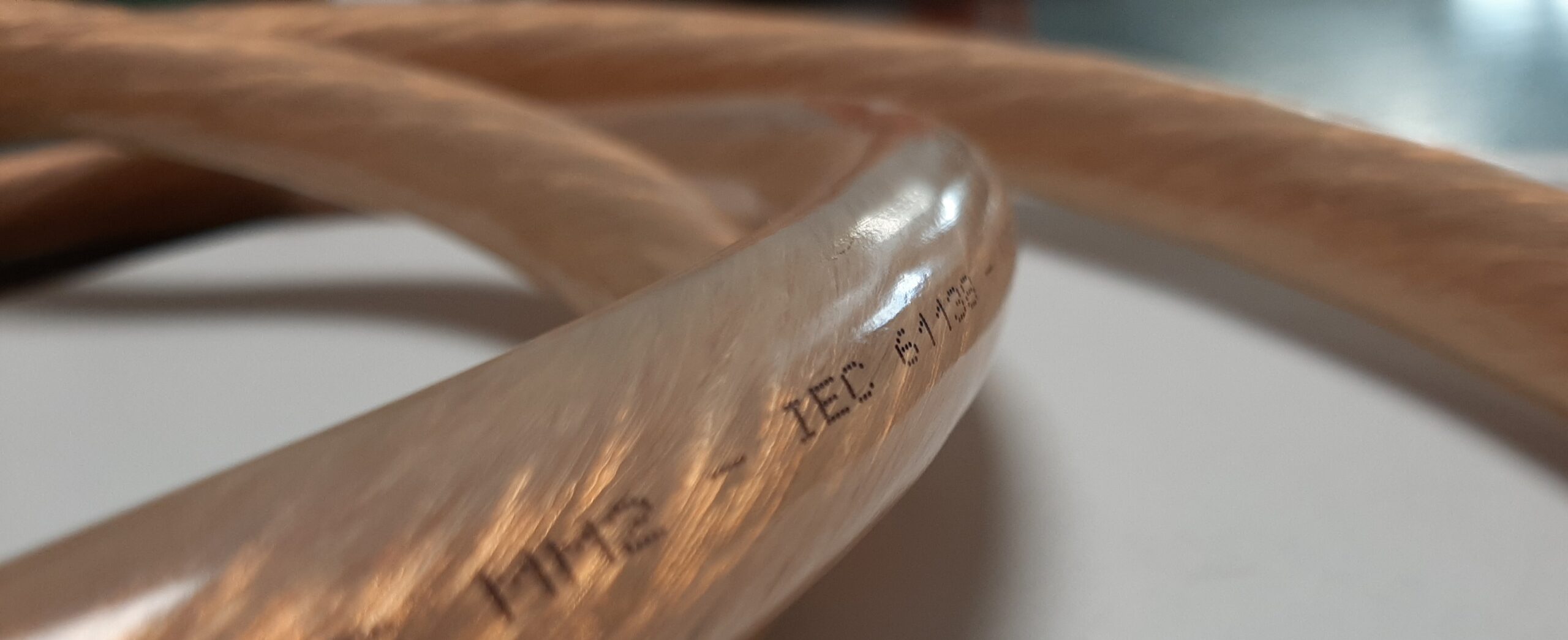

Transparent cables
Single and multi-conductor cables with transparent long lasting insulation and/or outer sheath. Made with class 5 and class 6 copper. Types as H003V-D among others.
![Image](https://www.cablesiac.com/wp-content/uploads/2022/10/aluminio-web-1.jpg)
Aluminum cables
Low voltage cables up to 3kV, single and multiconductor with aluminum class 2, in PVC, PP and LSZH, types such NA2XH, RV-AL, RZ1-AL, XZ1 AL, etc...
![Image](https://www.cablesiac.com/wp-content/uploads/2023/03/EGFA-CON-LOGO.png)
Câbles d'Instrumentation
Cables d'instrumentation pour industries pétrolières et chimiques.
Avec écran par paires et général. Armé avec 2 feuillards en acier.
Types EGSF, EISF, EGFA, EIFA
![Image](https://www.cablesiac.com/wp-content/uploads/2022/04/composite-cables-banner-e1664818000632.jpg)
Composite cables
We manufacture hybrid composite cables, with different types of conductor and section. Both in PVC, LSZH, TPE, PUR, etc..
